Digitální manometr CPG1500 0,1% 0/60bar, G1/2", Bluetooth + USB + DATALOGER
Digitální manometr S VNITŘNÍ PAMĚTÍ s bezdrátovým přenosem, v ceně SW a kalibrace.
CPG1500 0 ... 60 bar gauge G 1/2 B

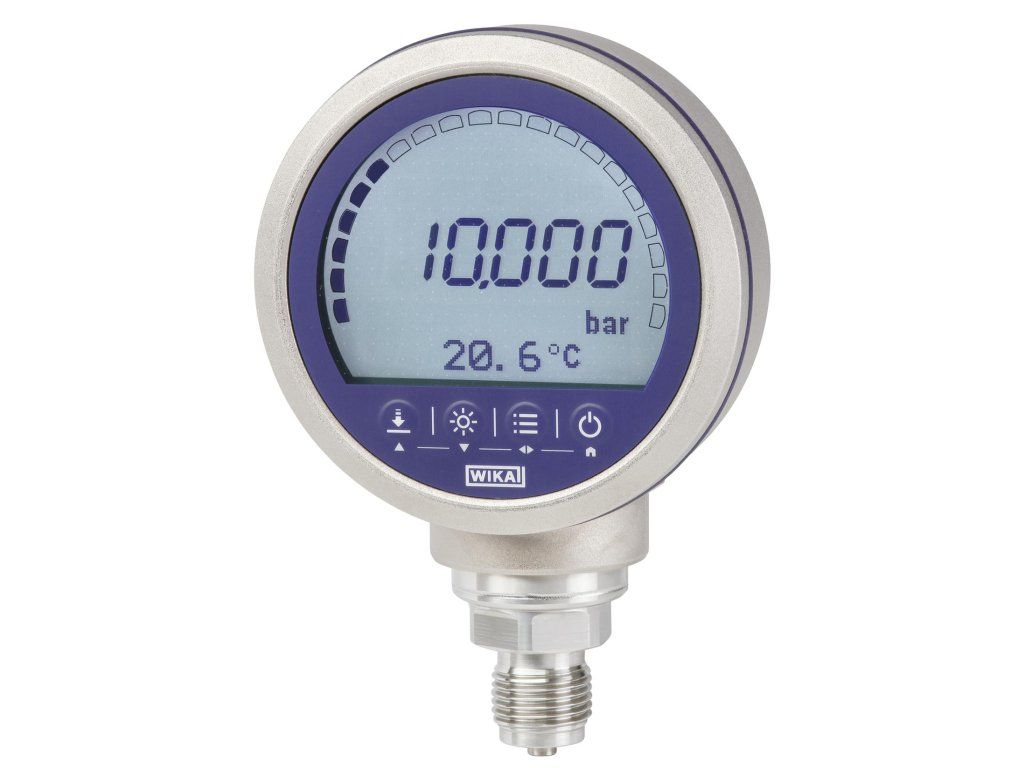

Precision digital pressure gauge - Model CPG1500
Specifications according to data sheet: CT 10.51
Explosion protection: without
Measuring range: 0 ... 60 bar gauge
Process connection: G 1/2 B
Wetted parts: stainless steel, Elgiloy Sensor
Accuracy: 0.1 % FS
Type of certificate: Acceptance test certificate 3.1 in accordance with DIN EN 10204
Communication: Bluetooth®
Info Bluetooth®: Please bear in mind the relevant radio approvals in your country.
incl. protective housing cap
Calibration of pressure measuring instruments
Type of certificate: Acceptance test certificate 3.1 in accordance with DIN EN 10204
Type of device under test: Electrical measuring device with display (digital pressure gauge, pressure controller, etc.)
Accuracy: >= 0,1 % … <= 0,6 %
Numbers of measurement series: 2
Number of measuring points per measurement series: 9
Pressure type - pressure: Relative pressure (over- or underpressure)
Calibration range - pressure: > 10 mbar … <= 400 bar
Conformity assessment is carried out in accordance with IN00.60, unless otherwise specified by the customer.
Documentation: Calibration (documentation of the values)
1. Language of certificate: DE
2. Language of certificate: GB
Further information about our services can be found in our Technical Information section at www.wika.de › Download › Technical Information › Service.
Precision digital pressure gauge - Model CPG1500
Specifications according to data sheet: CT 10.51
Explosion protection: without
Measuring range: 0 ... 60 bar gauge
Process connection: G 1/2 B
Wetted parts: stainless steel, Elgiloy Sensor
Accuracy: 0.1 % FS
Type of certificate: Acceptance test certificate 3.1 in accordance with DIN EN 10204
Communication: Bluetooth®
Info Bluetooth®: Please bear in mind the relevant radio approvals in your country.
incl. protective housing cap
Calibration of pressure measuring instruments
Type of certificate: Acceptance test certificate 3.1 in accordance with DIN EN 10204
Type of device under test: Electrical measuring device with display (digital pressure gauge, pressure controller, etc.)
Accuracy: >= 0,1 % … <= 0,6 %
Numbers of measurement series: 2
Number of measuring points per measurement series: 9
Pressure type - pressure: Relative pressure (over- or underpressure)
Calibration range - pressure: > 10 mbar … <= 400 bar
Conformity assessment is carried out in accordance with IN00.60, unless otherwise specified by the customer.
Documentation: Calibration (documentation of the values)
1. Language of certificate: DE
2. Language of certificate: GB
Further information about our services can be found in our Technical Information section at www.wika.de › Download › Technical Information › Service.
Doplňkové parametry
| Kategorie: | Datalogery CPG1500 0,05-0,025% |
|---|---|
| Hmotnost: | 0.3 kg |
| Připojovací závit: | G1/2" |
| Rozsah v bar: | 0/60 bar |
