Digitální manometr CPG1500 0,1% 0/700bar, G1/2", bezdrátový přenos dat + USB konektor + SW

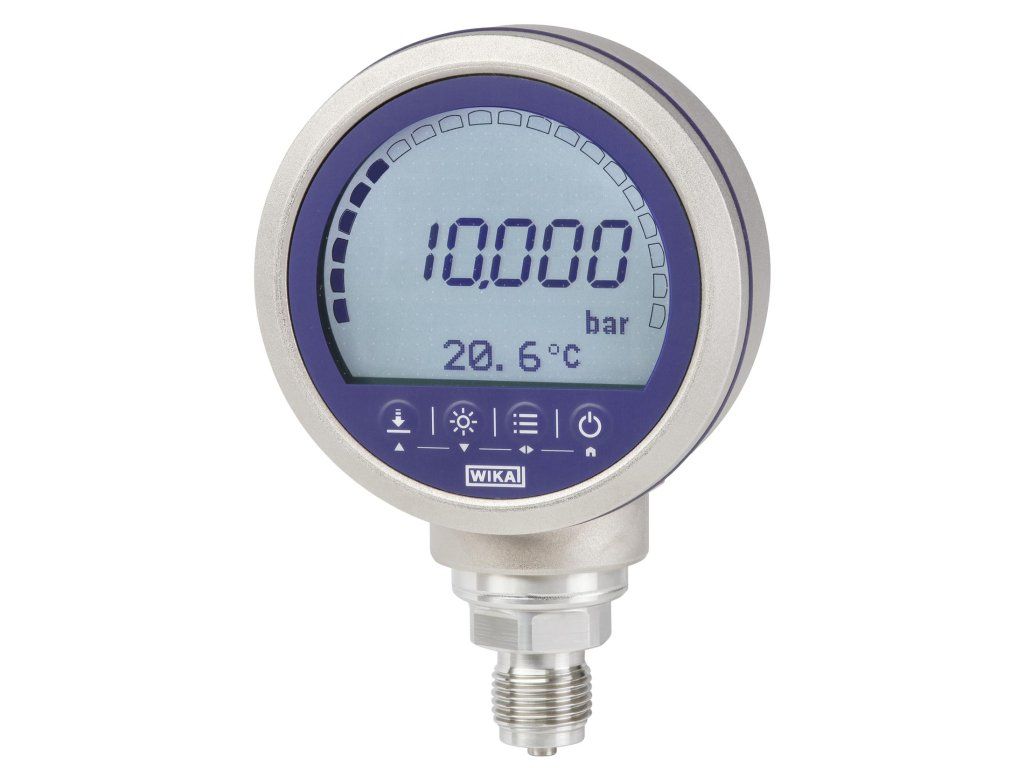

Precision digital pressure gauge - Model CPG1500
Specifications according to data sheet: CT 10.51
Explosion protection: without
Measuring range: 0...700 bar gauge
Process connection: G 1/2 B
Wetted parts: stainless steel, Elgiloy Sensor
Accuracy: 0.1 % FS
Type of certificate: Acceptance test certificate 3.1 in accordance with DIN EN 10204 (factory calibration)
Communication: WIKA-Wireless
Info Bluetooth®: Please bear in mind the relevant radio approvals in your country.
incl. protective housing cap

Calibration of pressure measuring instruments

Type of certificate: Acceptance test certificate 3.1 in accordance with DIN EN 10204 (factory calibration)
Type of device under test: Electrical measuring device with display (digital pressure gauge, pressure controller, etc.)
Accuracy: >= 0,1 % … <= 0,6 %
Numbers of measurement series: 2
Number of measuring points per measurement series: 9
Pressure type - pressure: Relative pressure (over- or underpressure)
Calibration range - pressure: > 400 bar … <= 1.600 bar


Documentation: Calibration (documentation of the values)
1. Language of certificate: DE
2. Language of certificate: GB
