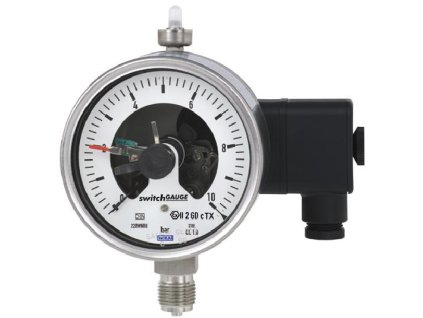

kontaktní manometr WIKA PGS21.100 0/1bar, G1/2B spodní přip., +821.12
PGS21.100...LM-D20 1 bar G1/2B
Alte Typenbezeichnung 212.20.100
magnetic snap action switch, model 821.12
plug sidewise
Case: stainless steel
Connection location: lower mount
class 2.5
Window: polycarbonate
Movement: Copper alloy
Electrical data: Pmax = 30W/50 VA I = 0,02...0,3 A
Permissible ambient temperature: -20 ... +60 °C
Permissible medium temperature: -20 ... +80 °C (-4 ... +176 °F)
Ingress protection: IP 54
Pressure Gauge Standard: International (standard Europe)
*WIKA*
kontaktní manometr WIKA PGS21.100 0/10bar, M20x1,5mm spodní přip., +821.12
PGS21.100...LM-D20 10bar M20x1,5mm
NG100mm, 1. mag. kontakt spíná, 2. rozpíná
Alte Typenbezeichnung 212.20.100
magnetic snap action switch, model 821.12
plug sidewise
Case: stainless steel
Connection location: lower mount
class 2.5
Window: polycarbonate
Movement: Copper alloy
Electrical data: Pmax = 30W/50 VA I = 0,02...0,3 A
Permissible ambient temperature: -20 ... +60 °C
Permissible medium temperature: -20 ... +80 °C (-4 ... +176 °F)
Ingress protection: IP 54
Pressure Gauge Standard: International (standard Europe)
*WIKA*
