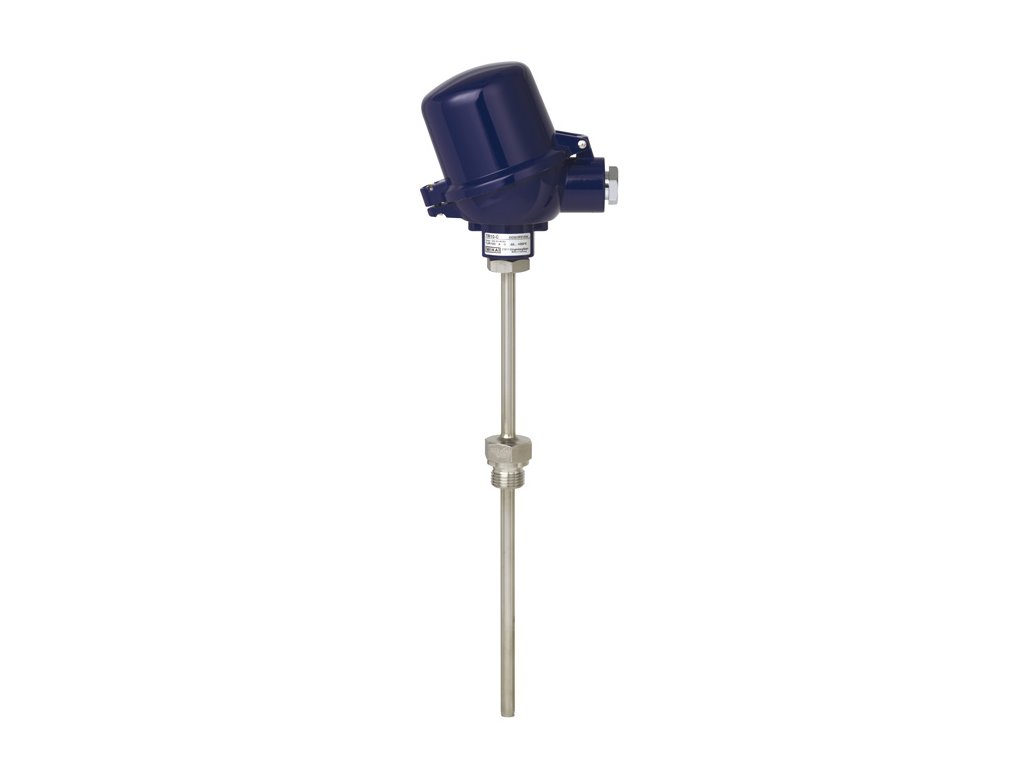

odporový teploměr s jímkou TR10-C -30/+300°C, ponor U1=160mm, jímka TW35 G1/2" PN40

TR10-C RTD assembly with fabricated threaded protection tube

Specifications according to data sheet: TE 60.03
1xPt100, 4-wire
Class A, IEC 60751
Temperature range of selected class: -30...+300°C
Head / housing: BSZ, Aluminum, ball shaped, flip-top
Cable entry: Standard cable entry
Thread size cable entry: M20 x 1.5
Transmitter: Without (terminal block)
Connection to neck tube: M24 x 1,5
Protection tube: Straight, thread, form 2G DIN 43772
Protection tube diameter: 9x1 mm
Process connection: G 1/2 B
Protection tube material: Stainless steel 1.4571
Insertion length [A] [U1]: 160 mm
Neck length [MH/N]: 130 mm
Diameter measuring insert: 6 mm
Sheath material measuring insert: Stainless steel 1.4571
Sealing: Without
Protection tube total length (spare) [L]: 305 mm
Measuring insert length (spare) [l5]: 315 mm
