Odporový teploměr TR10-B 1xPt100 3-v -50/+250°C 4/20mA T15 + TW10 jímka,příruba DN25 PN40

TR10-B, 1xPt100, 3-w, Cl.B, -50...+250°C, O 6 mm, T15

Diameter measuring insert: O 6 mm, 1.4571, l1/A/U2=342 mm

Head / housing: BSZ (Alu), Strd.-gland, M20x1.5, T15 on insert

Neck tube: 12x2.5 mm, Stainless steel, M24 x 1,5 - G 1/2 B, MH=150 mm (approx. 6 inch)

Sealing: Copper
Specifications according to data sheet: TE 60.02
Measuring insert length (spare) [l5]: 517 mm

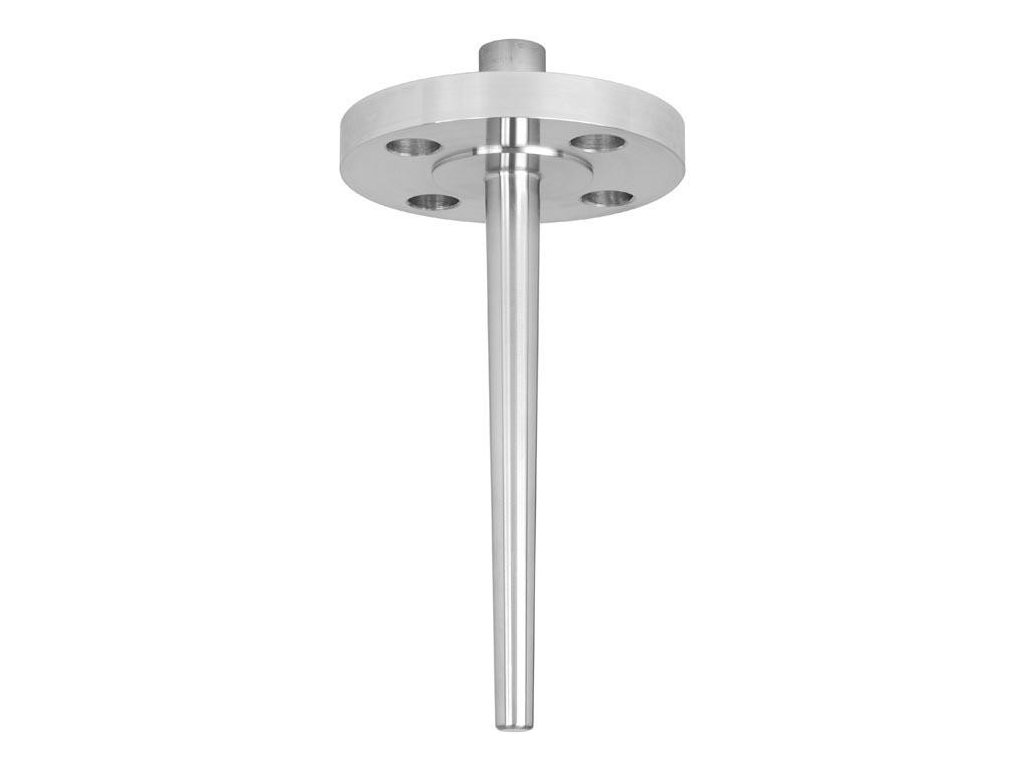

TW10-P PPW 3 mm G 1/2 female U=300 mm B=0.260 inch (6.6 mm) SS316/316L
Flange: EN: DN25 PN40 B1
Connection to thermometer [N]: G 1/2 female
Material: SS316/316L
Flange material: SS316/316L
Thermowell style: Tapered
Head length [H]: 45 mm
Insertion length [U]: 300 mm
Bar diameter [Bd or F2]: 30 mm
Root diameter [Q]: 22 mm
Tip diameter [V or F3]: 16 mm
Bore size [B or d1]: 0.260 inch (6.6 mm)
Bore depth / stem length (US) [A]: 338 mm
Specifications according to data sheet: TW 95.10


T15.H, Ex: Withoutbasic con. Pt100, 3w, +0...+150°C

Specifications according to data sheet: TE 15.01
Configuration sensor: Pt100
Output signal: 4 ... 20 mA, 2-wire-design
Tamb: Standard -40...85°C
Transmitter Signalling of error: Down scale 3,5 mA
