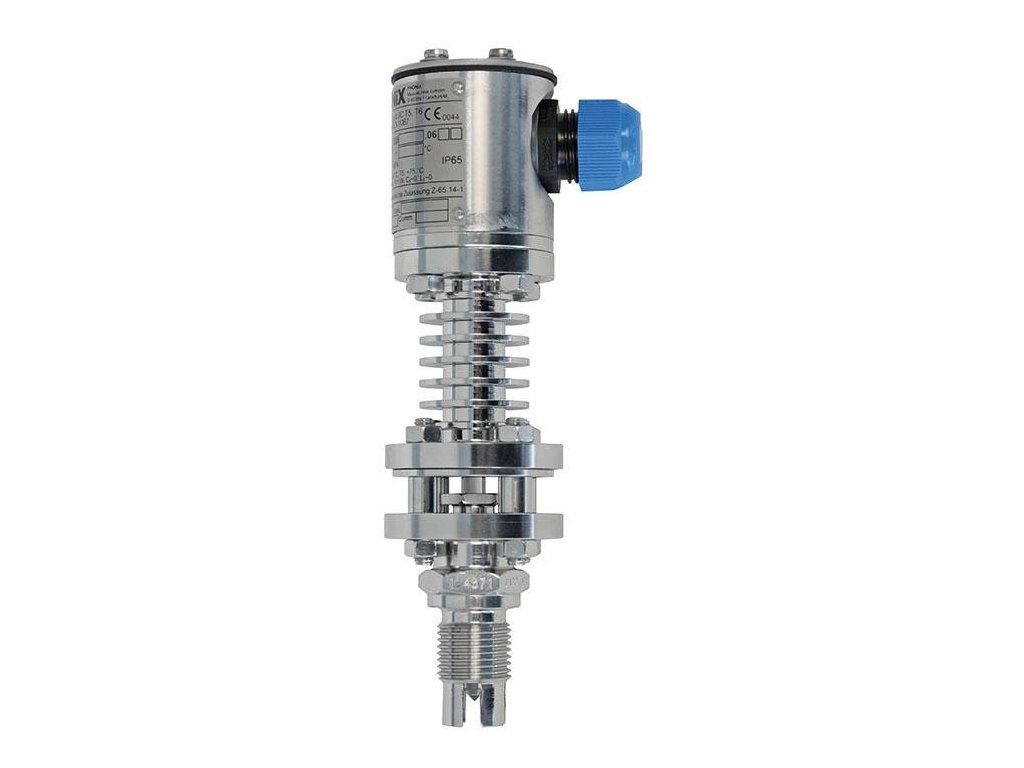

Optoelektrický spínač hladiny OLS-S KSR-OPTO.06 1/2" BSP, Ex ib
Spínací bod 50mm, G1/2" 195bar, 250°C, Exib
Optoelektrický spínač hladiny OLS-S KSR-OPTO.06 1/2" BSP, Ex ib
720.211300005.0680-S1KOG1/2"
Optoelectronic Level Switch Type OLS-S
Approval number OPTO: II 1/2 G Ex ib IIC T5, T6 ZELM 06 ATEX 0299
Pressure: 195 bar
Process temperature: -60 °C...250°C
Switching point (ML): 50 mm
Insertion length (EL): 54 mm
Material: Stainless steel 316Ti (EN 1.4571)
Process connection: Mounting thread 1/2"BSP
Glass: Cladded core glass shape V
Ingress protection: IP65
Weight: 0.8 kg
Brand name: KSR KUEBLER
Switch amplifier: a compatible KSR switch amplifier is necessary.
Optoelectronic Level Switch Type OLS-S
Approval number OPTO: II 1/2 G Ex ib IIC T5, T6 ZELM 06 ATEX 0299
Pressure: 195 bar
Process temperature: -60 °C...250°C
Switching point (ML): 50 mm
Insertion length (EL): 54 mm
Material: Stainless steel 316Ti (EN 1.4571)
Process connection: Mounting thread 1/2"BSP
Glass: Cladded core glass shape V
Ingress protection: IP65
Weight: 0.8 kg
Brand name: KSR KUEBLER
Switch amplifier: a compatible KSR switch amplifier is necessary.
Doplňkové parametry
| Kategorie: | Spínače optoel. |
|---|---|
| Hmotnost: | 0.3 kg |
