snímač A-10 0/40bar, 0/5V, 1/4NPT, tř. 0,5%, 8/30V DC
snímač A-10 0/40bar, 0/5V, 1/4NPT, tř. 0,5%, 8/30V DC
A-10 ; 0 ... 40 bar gauge; 0 ... 5 V, 3-wire @ 8...30 V DC

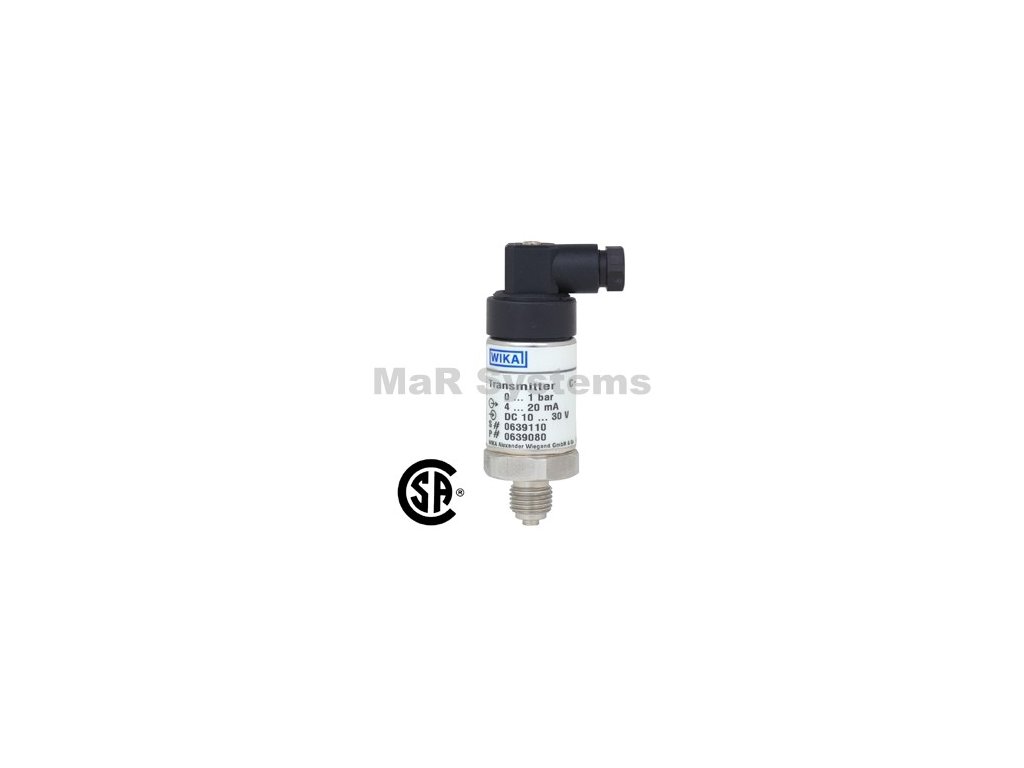

Pressure transmitter Model A-10
Non-linearity: 0.5% BFSL
Process connection: 1/4NPT
Electrical connection: circular connector M12x1, 4-pin
Pin assignment: U+=1, U-=3, S+=4
Permissible medium temperature: 0...+80 °C
Leakage rate: 5x10^-3 (mbar*l)/s
Approvals: cULus
Type of packaging: folding box single
WIKA standard - specification according to data sheet PE 81.60
Pressure transmitter Model A-10
Non-linearity: 0.5% BFSL
Process connection: 1/4NPT
Electrical connection: circular connector M12x1, 4-pin
Pin assignment: U+=1, U-=3, S+=4
Permissible medium temperature: 0...+80 °C
Leakage rate: 5x10^-3 (mbar*l)/s
Approvals: cULus
Type of packaging: folding box single
WIKA standard - specification according to data sheet PE 81.60
Doplňkové parametry
| Kategorie: | Snímače A-10 |
|---|---|
| Hmotnost: | 0.1 kg |
| Připojovací závit: | 1/4 NPT |
| Rozsah v bar: | 0/40 bar |
| Výstupní signál: | 0/5V |
