snímač hladiny AFVEN100/16/B1-VK18/T15-L4450/18-V80R

AFVEN100/16/B1-VK18/T15-L4,450/18-V80R

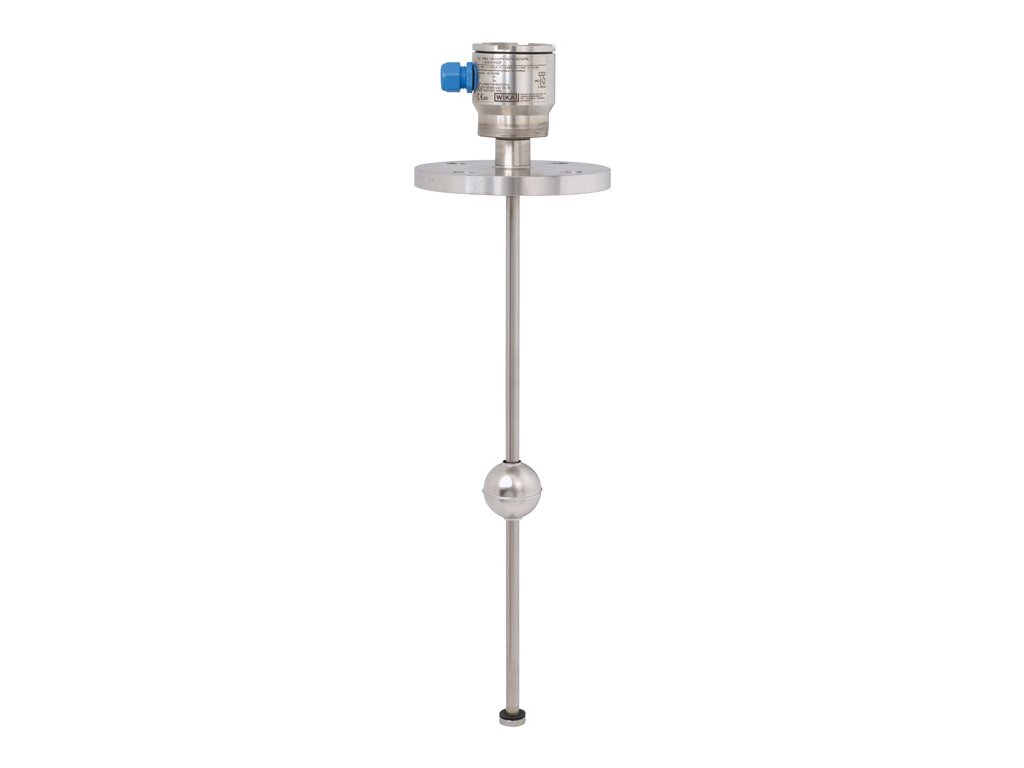

Magnetic Level Transmitter Type FLR-SB
Pressure: 5 bar
Temperature range -20°C up to +80°C
Fluid density: 1000 kg/m3
Material: Stainless steel 316Ti (EN 1.4571)
Housing: Aluminium
Ingress protection: IP66/IP68
Electrical connection: M20 x 1.5 mm with cable gland
Output signal: 4-20 mA
Head mounted transmitter: T15.HZ - 2 wire, standard
Process connection: Flange DIN EN 1092-1 DN 100 PN 16 Form B1
Float: Stainless steel 316Ti V80R
Float outer diameter: 80 mm
Guide tube: OD 18 mm Insertion length (L): 4450 mm
100% level position (L1): 40 mm
Measuring range: 4356 mm
Contact separation: 18 mm
Tube end: Float collar
