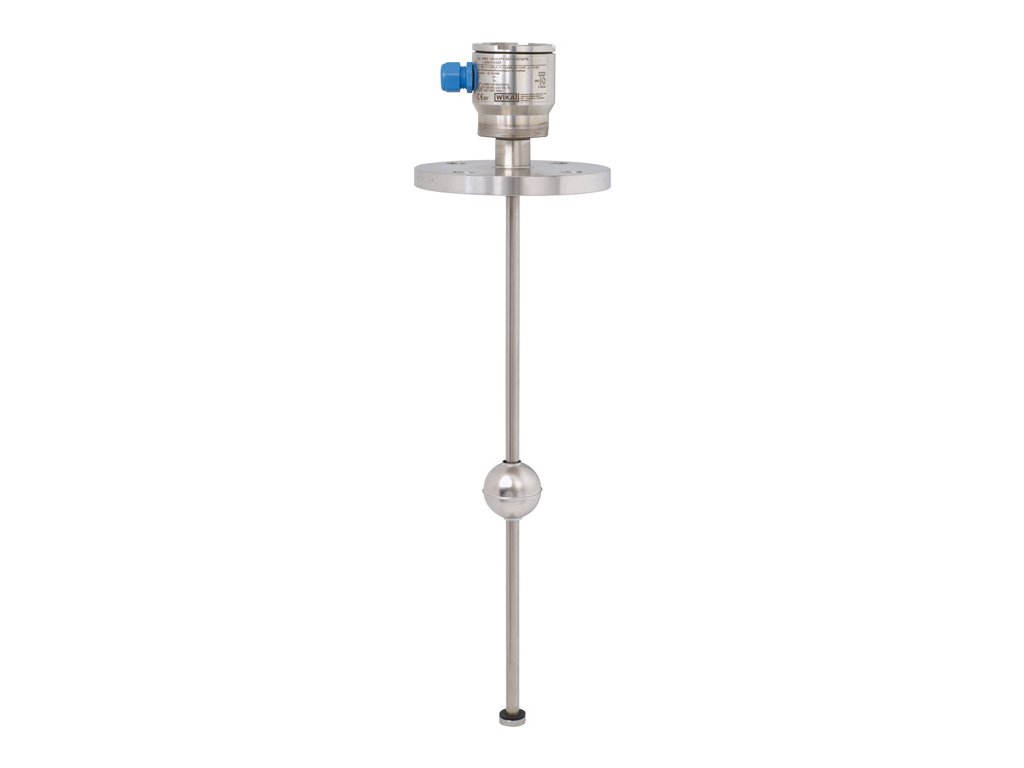

snímač hladiny FLR-SBI, L=1200mm, závit. přípoj 2"NPT, T32.HA 4/20mA HART Exi +LCD, nerez

Gasolín 700kg/m3 16bar 40°CNMG125-AVGNPTV2"-VK10/TLEH-L1.200/12-V62R-ExMagnetic Level Transmitter Type FLR-SBIApproval: Ex i; KEMA 01ATEX1052 X II 1/2G Ex ia IIC T4...T6 - II 2 D T80 °C IP6XPressure: 16 barTemperature range -10°C up to +80°CFluid density: 700 kg/m3Material: Stainless steel 316Ti (DIN 1.4571)Housing: Stainless steel Ingress protection: IP66/68Electrical connection: M20 x 1.5 mm with cable glandOutput signal: 4-20 mA superimposed with Hart® protocol communicationHead mounted transmitter: TLEH - 2 wire Ex i HART with LCD displayProcess connection: Mounting thread downwards 2"NPT Float: Stainless steel 316Ti V62RGuide tube: OD 12 mm Insertion length (L): 1200 mm100% level position (L1): 31 mmMeasuring range: 1132 mmContact separation: 10 mmFloat can't be mounted through the connection nozzle
