snímač S-20 0/600bar, 4/20mA, M20x1,5mm, tř.0,25% BFSL, Testprotokol

S-20 ; 0 ... 600 bar gauge; 4 ... 20 mA, 2-wire @ DC 8...35 V

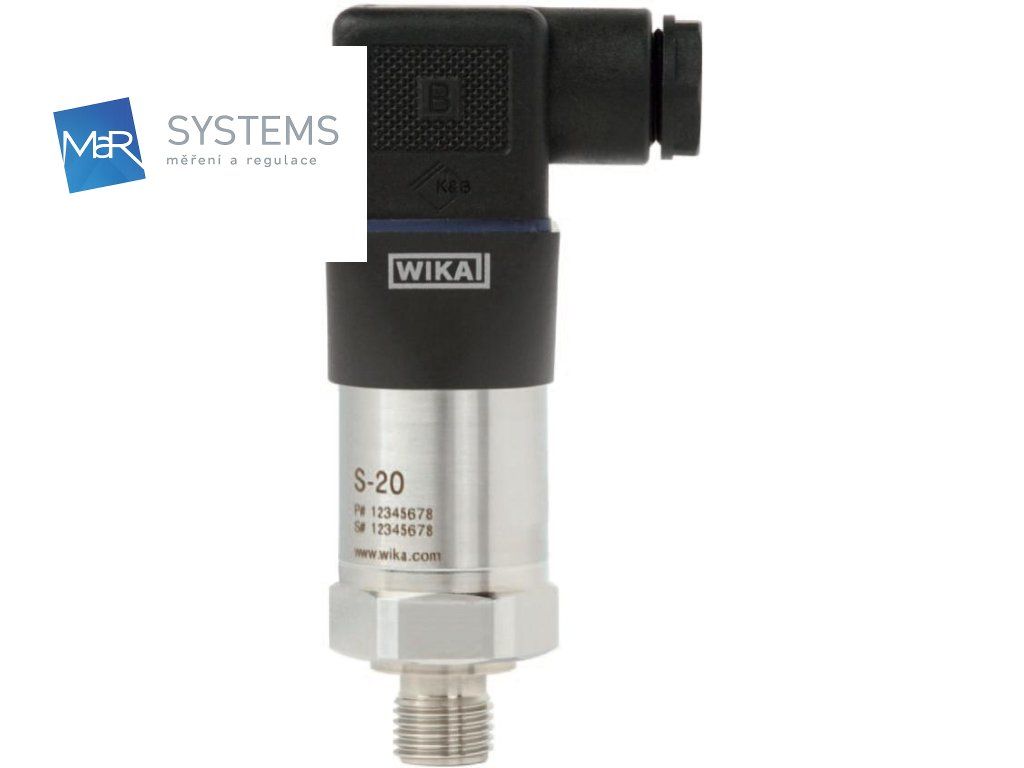

Pressure transmitter Model S-20
Non-linearity: 0.25% BFSL
Overpressure limit: see data sheet
Process connection: M20 x 1.5 DIN16288 ; Sealing: copper
Pressure port: D 2.5 mm
Electrical connection: angular connector DIN 175301-803 A mating connector included
pin assignment el. connection: U+=1, U-=2
Permissible medium temperature: -30...+100°C
shock and vibration resistance: 100 g shock, 20 g vibration
