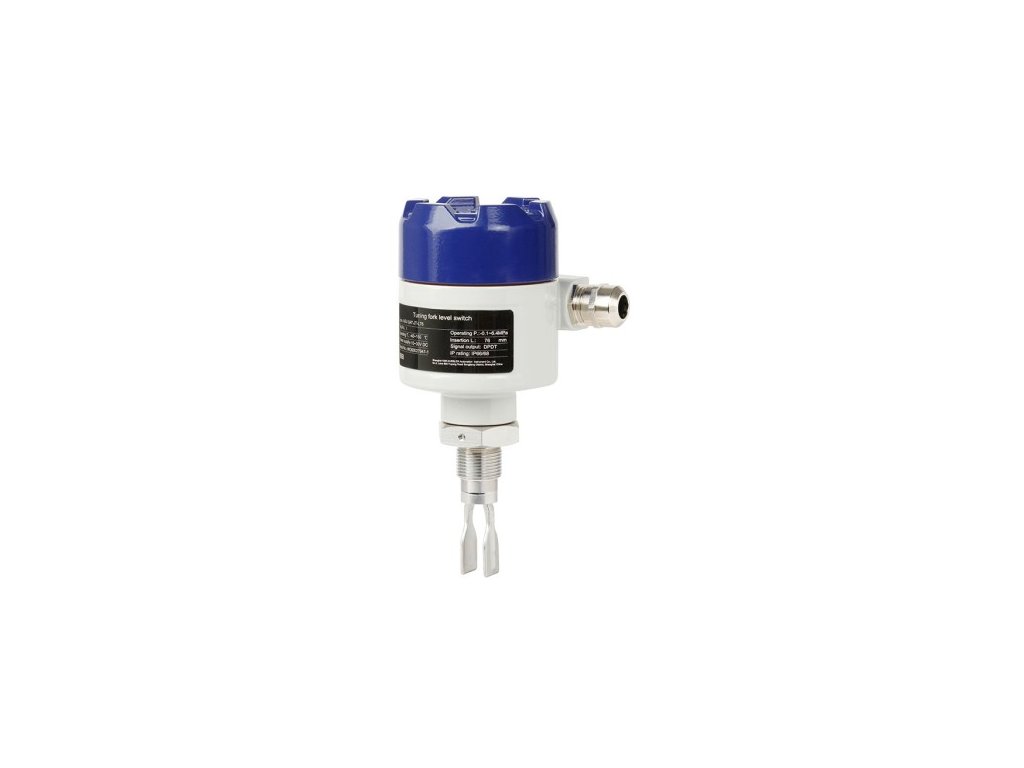

Vibrační spínač v Ex i provedení TLS-AFV-ANSI 1"/150/RF-NR-M/L313-Exi, příruba ASME 1" 150

TLS-AFV-ANSI 1"/150/RF-NR-M/L313-Exi
Tuning Fork Level Switch TLS-SAI
Approval: IECEx Ex i ; IECEx TUR 23.0057X; Ex ia IIC T6…T2 Ga/Gb
Process pressure: -1 ... +100 bar [-0.1 ... +10 MPa]
Temp.: -40°C...100°C
Pressure: 10 bar
Material: Stainless steel 316L (DIN 1.4404)
Power supply: NAMUR 8.2V DC
Output: NAMUR 8.2V DC
Electrical connection: Housing Aluminum
Cable gland: 1/2"NPT without cable gland
Process connection: Flange ASME B16.5 1" 150# Form RF
Switch position 1: 300 mm
Insertion length (L): 313 mm
Extension: 272 mm
Length of tuning fork: 38 mm
Nameplate: Stainless steel laser printed

Inspection certificate 3.1 per EN 10204
Certificate type: Inspection certificate acc. to DIN EN 10204 3.1
Certificate Language: English and German
Certificate for: Vibrating level switch
Material certificate: Wetted parts material (metal contents)
