Vibrační spínač v Ex i provedení TLS-ANPTV-1"-NR-M/L463-Exi, přípoj 1"NPT závit

TLS-ANPTV-1"-NR-M/L463-Exi

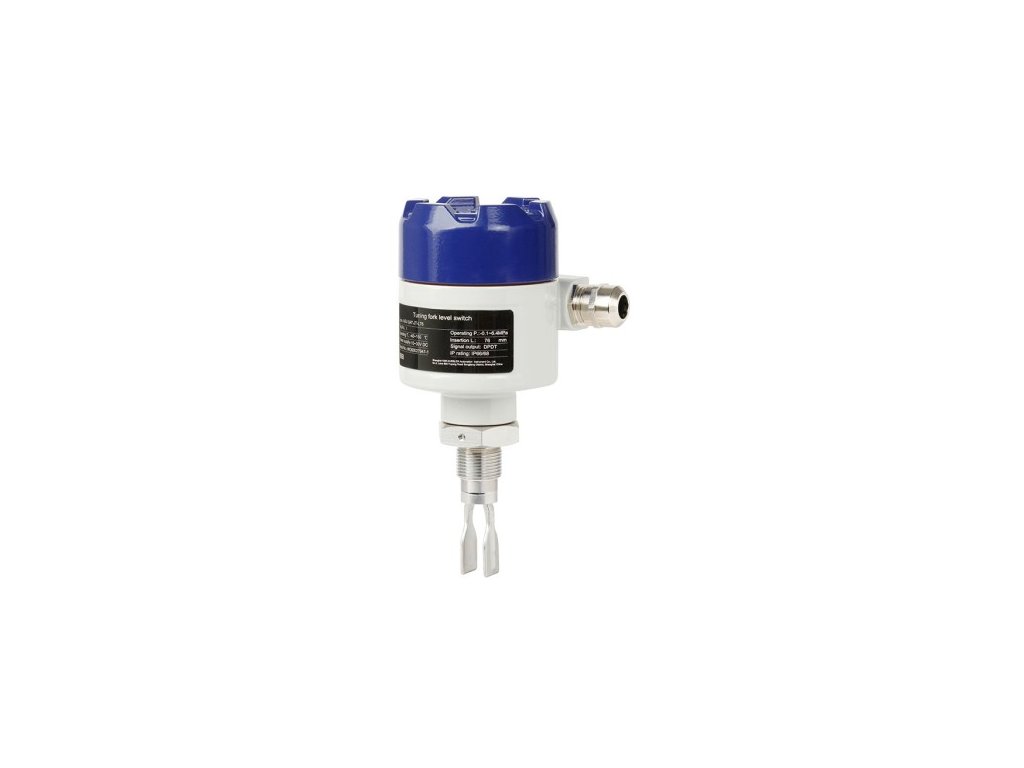

Tuning Fork Level Switch TLS-SAI
Approval: IECEx Ex i ; IECEx TUR 23.0057X; Ex ia IIC T6…T2 Ga/Gb
Process pressure: -1 ... +100 bar [-0.1 ... +10 MPa]
Temp.: -40°C...100°C
Pressure: 10 bar
Material: Stainless steel 316L (DIN 1.4404)
Power supply: NAMUR 8.2V DC
Output: NAMUR 8.2V DC
Electrical connection: Housing Aluminum
Cable gland: 1/2"NPT without cable gland
Process connection: Mounting thread downwards 1"NPT
Switch position 1: 450 mm
Insertion length (L): 463 mm
Extension: 399 mm
Length of tuning fork: 38 mm
Nameplate: Stainless steel laser printed

Inspection certificate 3.1 per EN 10204
