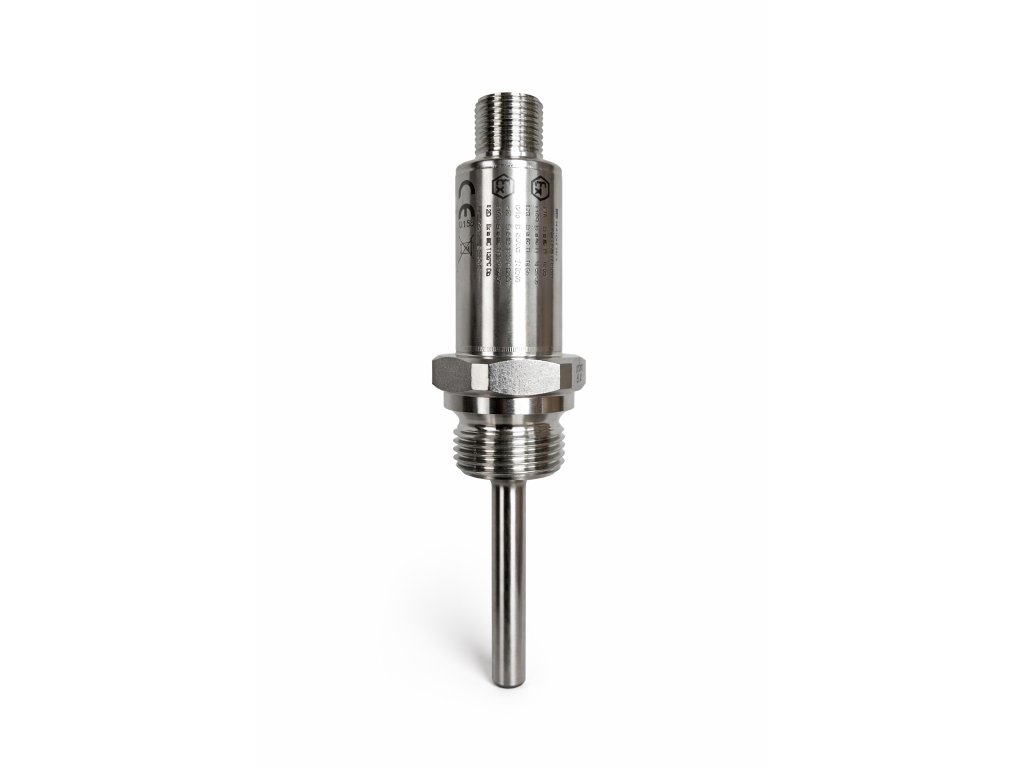

kompaktní teploměr TR34/ATEX/Pt100/tř.A/4 vodič -30...+150°C/G1/2/6mm/50mm
TR34,-30/+150°C Pt100-4w, cl.A, G1/2 fixed, 50 mm x 6 mm, -30/+150°C
TR34, PT100-4w, cl.A, G1/2 fixed, 50 mm x 6 mm
ATEX / IECEx
Output signal: PT100-4w, cl.A
Electrical connection: Circular connector, M12x1
Process connection: Fixed threaded hex bushing G1/2 B
Process temperature: -30 ... +150°C
Sensor diameter od: 6 mm
Insertion length A: 50 mm
Permissible ambient temperature: -50 ... +85 °C (-58 ... +185 °F)
Pin assignment: Standard pin connection Pt-Sensors (see datasheet)
Specifications according to data sheet: TE 60.34
ATEX / IECEx
Output signal: PT100-4w, cl.A
Electrical connection: Circular connector, M12x1
Process connection: Fixed threaded hex bushing G1/2 B
Process temperature: -30 ... +150°C
Sensor diameter od: 6 mm
Insertion length A: 50 mm
Permissible ambient temperature: -50 ... +85 °C (-58 ... +185 °F)
Pin assignment: Standard pin connection Pt-Sensors (see datasheet)
Specifications according to data sheet: TE 60.34
Doplňkové parametry
| Kategorie: | Kompaktní teploměry |
|---|---|
| Hmotnost: | 0.5 kg |
| Délka stonku: | 100 mm |
| Výstupní signál: | Pt100 |
